| Part Num | Download | Reverse Voltage Vr | Forward Current Io | Forward Voltage Vf | Reverse Current Ir | Recovery Time | Max Surge Current | Mounting Style | Package Case | Certified | Notes | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4RS201M | 50 V | 4.0 A | 1.1 V | 2 uA | < 60 Hz | 120 A | Through-hole | RS-2M | 4rs201m-4rs207m.pdf | |||
| 4RS202M | 100 V | 4.0 A | 1.1 V | 2 uA | < 60 Hz | 120 A | Through-hole | RS-2M | 4rs201m-4rs207m.pdf | |||
| 4RS203M | 200 V | 4.0 A | 1.1 V | 2 uA | < 60 Hz | 120 A | Through-hole | RS-2M | 4rs201m-4rs207m.pdf | |||
| 4RS204M | 400 V | 4.0 A | 1.1 V | 2 uA | < 60 Hz | 120 A | Through-hole | RS-2M | 4rs201m-4rs207m.pdf | |||
| 4RS205M | 600 V | 4.0 A | 1.1 V | 2 uA | < 60 Hz | 120 A | Through-hole | RS-2M | 4rs201m-4rs207m.pdf | |||
| 4RS206M | 800 V | 4.0 A | 1.1 V | 2 uA | < 60 Hz | 120 A | Through-hole | RS-2M | 4rs201m-4rs207m.pdf | |||
| 4RS207M | 1000 V | 4.0 A | 1.1 V | 2 uA | < 60 Hz | 120 A | Through-hole | RS-2M | 4rs201m-4rs207m.pdf | |||

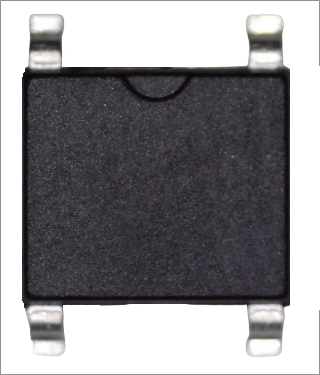

| ULBF810 | 1000 V | 8.0 A | 1.1 V | 5.0 uA | < 60 Hz | 220 A | SMD/SMT | ULBF | ulbf808-ulbf810.pdf | |||
| ULBF808 | 800 V | 8.0 A | 1.1 V | 5.0 uA | < 60 Hz | 220 A | SMD/SMT | ULBF | ulbf808-ulbf810.pdf | |||
| MP4005 | 50 V | 40 A | 1.1 V | 5.0 uA | < 60 Hz | 400 A | Through-hole | MP-40 | MP-40,40A,50V,Bridge | mp4005-mp4010.pdf |
