橋式整流器

Package / Case	Trr	Mounting	Certified	Rev Voltage Vr	Fwd Current Io	Surge Current	Type
BR-10 BR-3 BR-6 BR-8 D3K DB-1 DB-LS DB-S KBL KBP KBP-G LMD-S MB-F MB-M MD-F MD-S MD-SJ MP-15 MP-15W MP-25 MP-25W MP-35 MP-35W MP-40 MP-50 MSB-S MSBS MT-35 RBU RC-2 RS-10M RS-15M RS-20M RS-25M RS-2L RS-2M RS-30M RS-30TB RS-35M RS-35TB RS-4L RS-4M RS-50M RS-6 RS-60M RS-6M RS-8 RS-8M RS10MLS RS15MLS RS20MLS RS25MLS RSBF SKBPC-Metal HS SLDBS SLMDS SLPDS SOF2-4 Through-hole ULBF	150 ns 250 ns 50 ns 500 ns 75 ns < 60 Hz Schottky	RS-50M SMD/SMT Through-hole	AEC-Q101

Product	Part Num	Rev Voltage Vr	Fwd Current Io	Trr	Surge Current	Mounting	Package

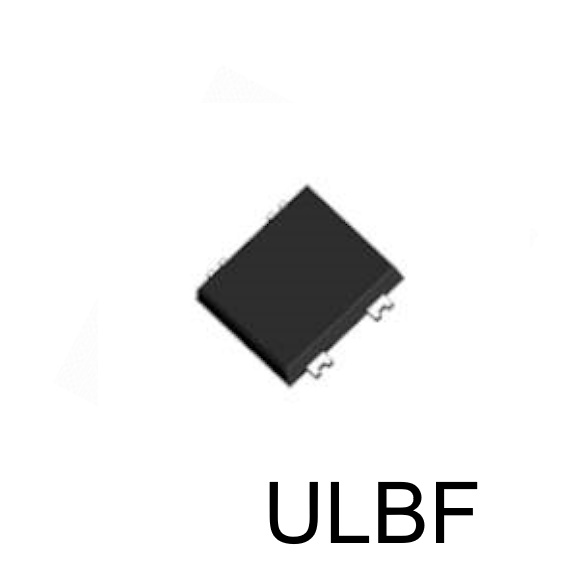

cloud_download	ULBF610	1000 V	6.0 A	< 60 Hz	200 A	SMD/SMT	ULBF
cloud_download	ULBF410	1000 V	4.0 A	< 60 Hz	150 A	SMD/SMT	ULBF

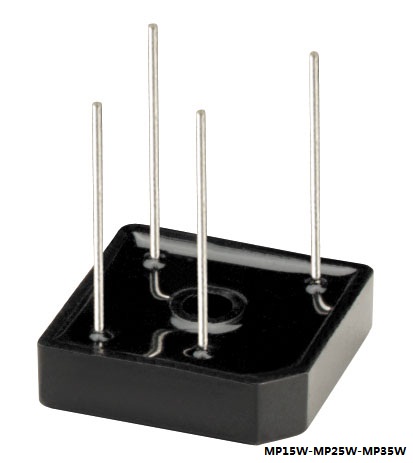

cloud_download	MP3512W	1200 V	35.0 A	< 60 Hz	300 A	Through-hole	MP-35W
cloud_download	MP4005	50 V	40 A	< 60 Hz	400 A	Through-hole	MP-40
cloud_download	RS806MH	800 V	8.0 A	< 60 Hz	185 A	Through-hole	RS-8M
cloud_download	RS807MH	1000 V	8.0 A	< 60 Hz	185 A	Through-hole	RS-8M
cloud_download	MP3512	1200 V	35.0 A	< 60 Hz	400 A	Through-hole	MP-35
cloud_download	KMD80S	80 V	1.0 A	Schottky	40 A	SMD/SMT	MD-S
cloud_download	KMD100S	100 V	1.0 A	Schottky	40 A	SMD/SMT	MD-S
cloud_download	KMD150S	150 V	1.0 A	Schottky	40 A	SMD/SMT	MD-S
