| Part Num | Download | Reverse Voltage Vr | Forward Current Io | Forward Voltage Vf | Reverse Current Ir | Typ Cap Charge | Max Surge Current | Mounting Style | Package Case | Notes | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BAW76 | 75 V | 150 mA | 1.0 V | 0.1 uA | 2 ns | 0.5 A | Through Hole | DO-35IFSM@ˉ | 1.0s | baw76.pdf | |
| SC3S06510HD | 650 V | 38 A | 1.5 V | 50 uA | 25 nQ | 121 A | Through-Hole | TO-263-2 | Schottky | sc3s06510hd.pdf | |
| SC3S12010C | 1200 V | 9.5 A | 1.8 V | 20 uA | 18.5 nQ | 120 A | Through-Hole | TO-252 | Schottky | sc3s12010c.pdf | |

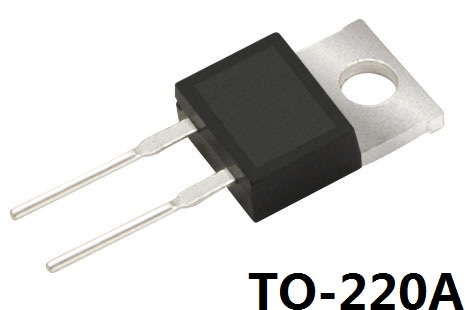

| SC2S17010A | 1700 V | 17.0 A | 1.8 V | 100 uA | 77 nQ | 90 A | Through-Hole | TO-220A | datasheet | sc2s17010a.pdf | |
| SC2S17015A | 1700 V | 15.0 A | 1.8 V | 150 uA | 142 nQ | 105 A | Through-Hole | TO-220A | datasheet | sc2s17015a.pdf | |
| SC3S06503A | 650 V | 8.0 A | 1.65 V | 10 uA | 5.4 nQ | 20 A | Through-Hole | TO-220A | datasheet | sc3s06503a.pdf | |
| SC3S06504A | 650 V | 5.0 A | 1.7 V | 100 uA | 11 nQ | 30 A | Through-Hole | TO-220A | datasheet | sc3s06504a.pdf | |
| SC3S06504C | 650 V | 5.0 A | 1.7 V | 100 uA | 11 nQ | 30 A | Surface Mount | D-PAK | datasheet | sc3s06504c.pdf | |
| SC3S06505A | 650 V | 10.0 A | 1.7 V | 100 uA | 23 nQ | 60 A | Through-Hole | TO-220A | datasheet | sc3s06505a.pdf | |
| SC3S06505C | 650 V | 10.0 A | 1.7 V | 100 uA | 23 nQ | 60 A | Surface Mount | D-PAK | datasheet | sc3s06505c.pdf |
